Catrax Go Master

Effortless turn

High-flow access control system combines robustness, technology and stylish design.
Its primary feature is the motorized mechanism, providing smooth, comfortable and silent passage through the gate.

Security

Flexibility

Robustness

Design

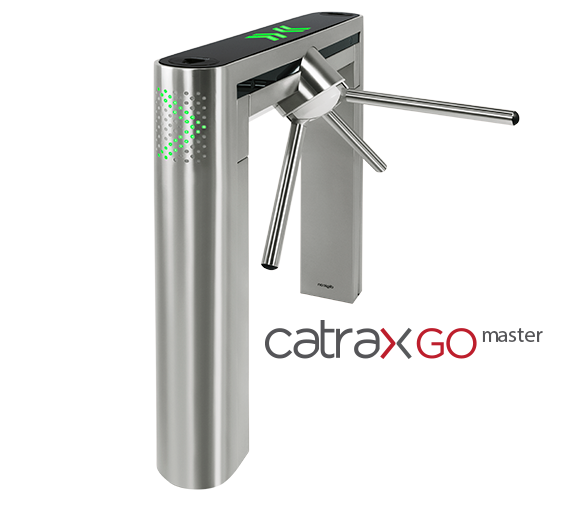

Catrax Go Master

Catrax Go Master

Bridge-type access control equipment with motorized tripod mechanism and drop arm safety system.

Features

– Rounded corners and absence of exposed screws prevent accidents for users.
– Internal space protected with anti-theft bolts allows easy integration with other access
control equipment.
– High levels of flow due to positioning of scanners (distant from gate mechanism).
– Electromagnet and optical sensor-activated turnstile locks allows for lower mechanical
wear and tear and longer service life.

– Motorized turn mechanism follows the user's motion.
– Support for integration board enables easy maintenance.
– Top pictogram indicating permission and direction of access.
– Lateral pictograms indicate direction of access.
– Roller bearing mechanisms with two bearing supports.
– Carbon steel finish with epoxy powder coating or AISI 304 brushed stainless steel
– Anti-panic device drops the turnstile arm to allow users to pass through unimpeded and
restores it with an automated command.
– Top pane with ABS corners to deploy readers.
– Pictograms with high-brightness LED lights indicating permission and direction of
access.

Optional

– Customizable top cover for deploying readers and elevator displays.
– Ticket safe.

Control Options

– MCA – TCP/IP access control board.
– Slotted barcode scanner for badges.
– Multibeam barcode scanner – ticket proximity.
– 2D code scanner.
– Wiegand/Abatrack proximity reader – HID/Indala/Acura.
– Mifare reader.
– Biometric reader.
